LIFTING & RIGGING

THE SAFESPEAR LIFT RANGE

Built to lift.
Ready for the task.

Hoists, synthetic slings and rigging equipment for lifting and load positioning. Explore the Safespear Lift range and discuss the capacity, length and configuration your operation needs.

Manual Chain Blocks

Overload-protected manual chain blocks in 0.5-10 tonne capacities, with 3m and 6m standard lift options.

View capacities & product IDs

Product ID	Capacity (t)	Lift (m)	Weight (kg)
SS-CB-0.5T-3M	0.5	3	11
SS-CB-01T-3M	1	3	12.5
SS-CB-02T-3M	2	3	19.5
SS-CB-03T-3M	3	3	29
SS-CB-05T-3M	5	3	41.3
SS-CB-10T-3M	10	3	78.5

Product ID	Capacity (t)	Lift (m)	Weight (kg)
SS-CB-0.5T-6M	0.5	6	12.6
SS-CB-01T-6M	1	6	14.8
SS-CB-02T-6M	2	6	23.6
SS-CB-03T-6M	3	6	37.2
SS-CB-05T-6M	5	6	54.5
SS-CB-10T-6M	10	6	104.9

Download Chain Blocks - 3m Lift data sheet (PDF) ↓Download Chain Blocks - 6m Lift data sheet (PDF) ↓

Safespear branded product illustration. Supplied model and documentation confirmed on enquiry.

Enquire about this range ↗

Lever Hoists

Overload-protected lever hoists in 0.8-9 tonne capacities, with a 1.5m standard lift.

View capacities & product IDs

Product ID	Capacity (t)	Lift (m)	Weight (kg)
SS-LH-0.8T-1.5M	0.8	1.5	7
SS-LH-1.6T-1.5M	1.6	1.5	11
SS-LH-3.2T-1.5M	3.2	1.5	21
SS-LH-6.3T-1.5M	6.3	1.5	31
SS-LH-09T-1.5M	9	1.5	47

Download Lever Hoists data sheet (PDF) ↓

Safespear branded product illustration. Supplied model and documentation confirmed on enquiry.

Enquire about this range ↗

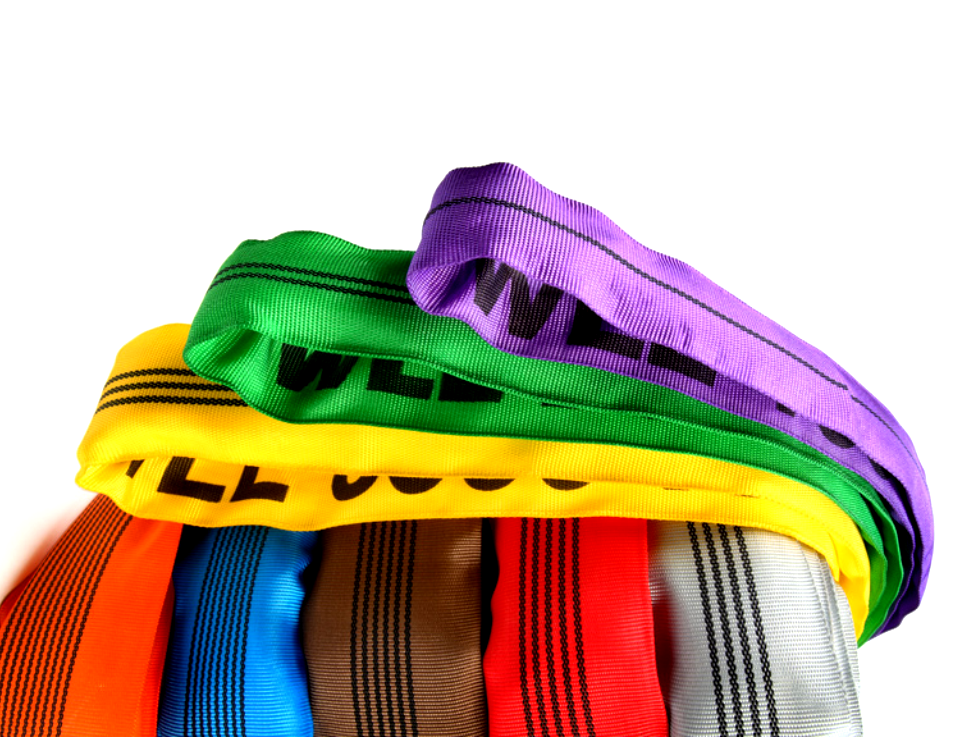

Neatly arranged colour-coded polyester round lifting slings

Round Slings

Flexible polyester endless slings for lifting and positioning loads. A protective fabric sleeve surrounds the load-bearing yarn core, providing a lightweight option for handling curved and irregular shapes.

View proposed capacity & colour range

WLL (t)	Colour
1	Violet
2	Green
3	Yellow
4	Grey
5	Red
6	Brown
8	Blue
10	Orange

Proposed range shown for enquiry. Confirm the required working load limit, sling length and lifting arrangement with our team. Product specifications and documentation will be confirmed for the supplied sling.

Representative product photograph. Final Safespear range to be confirmed.

Download Round Slings brochure (PDF) ↓Enquire about round slings ↗

Product specifications, model references and availability confirmed on enquiry.

GRADE 100 CHAIN & COMPONENTS

CONFIGURED FOR YOUR LIFT

Chain slings.
Built around your load.

Explore Grade 100 chain sling configurations and compatible components. Tell us the load, lifting points, reach and connection requirements so our team can discuss a suitable assembly.

THE SAFESPEAR LIFT RANGE

12 product families. 90 size options.

Explore chain, master links, connectors, shortening fittings and hooks, with Safespear item codes and technical data sheets.

Download Grade 100 Catalogue (PDF) ↓

Chain & components

SAFESPEAR | LIFT

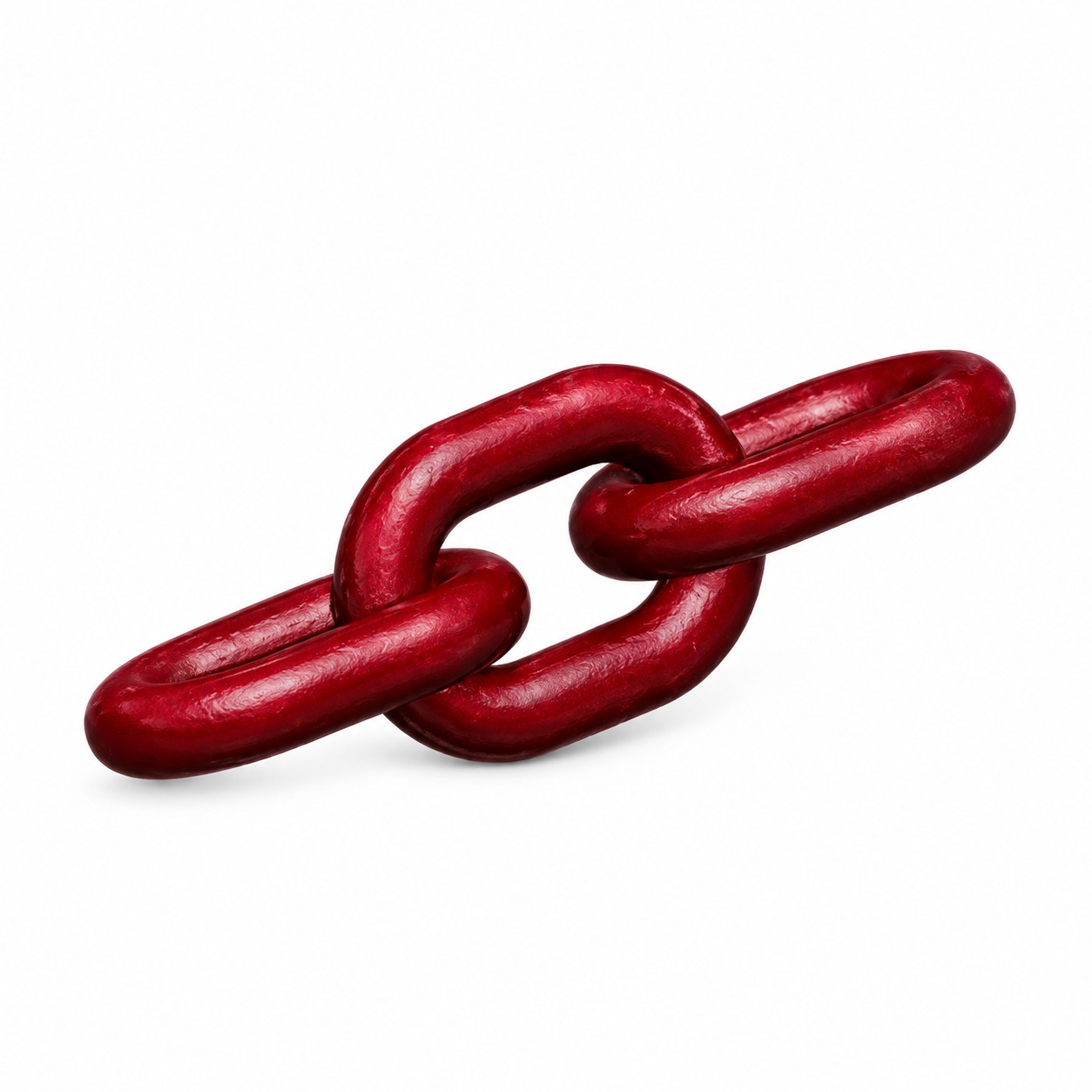

Alloy Lifting Chain

Alloy lifting chain for assembling Grade 100 chain slings. Select chain and compatible fittings by size, capacity and lifting arrangement.

View 7 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	Pitch (L) (mm)	External Width (B) (mm)	Internal Width (b) (mm)	Weight (kg/m)
SS-G100-CHAIN-06	6	1.4	18.0	21.0	9.0	0.859
SS-G100-CHAIN-08	8	2.5	24.0	27.5	11.5	1.491
SS-G100-CHAIN-10	10	4.0	30.0	34.5	14.5	2.309
SS-G100-CHAIN-13	13	6.7	39.0	45.0	19.0	3.871
SS-G100-CHAIN-16	16	10.0	48.0	55.5	23.5	5.717
SS-G100-CHAIN-20	20	16.0	60.0	68.0	28.0	8.822
SS-G100-CHAIN-22	22	19.0	66.0	73.5	29.5	10.391

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

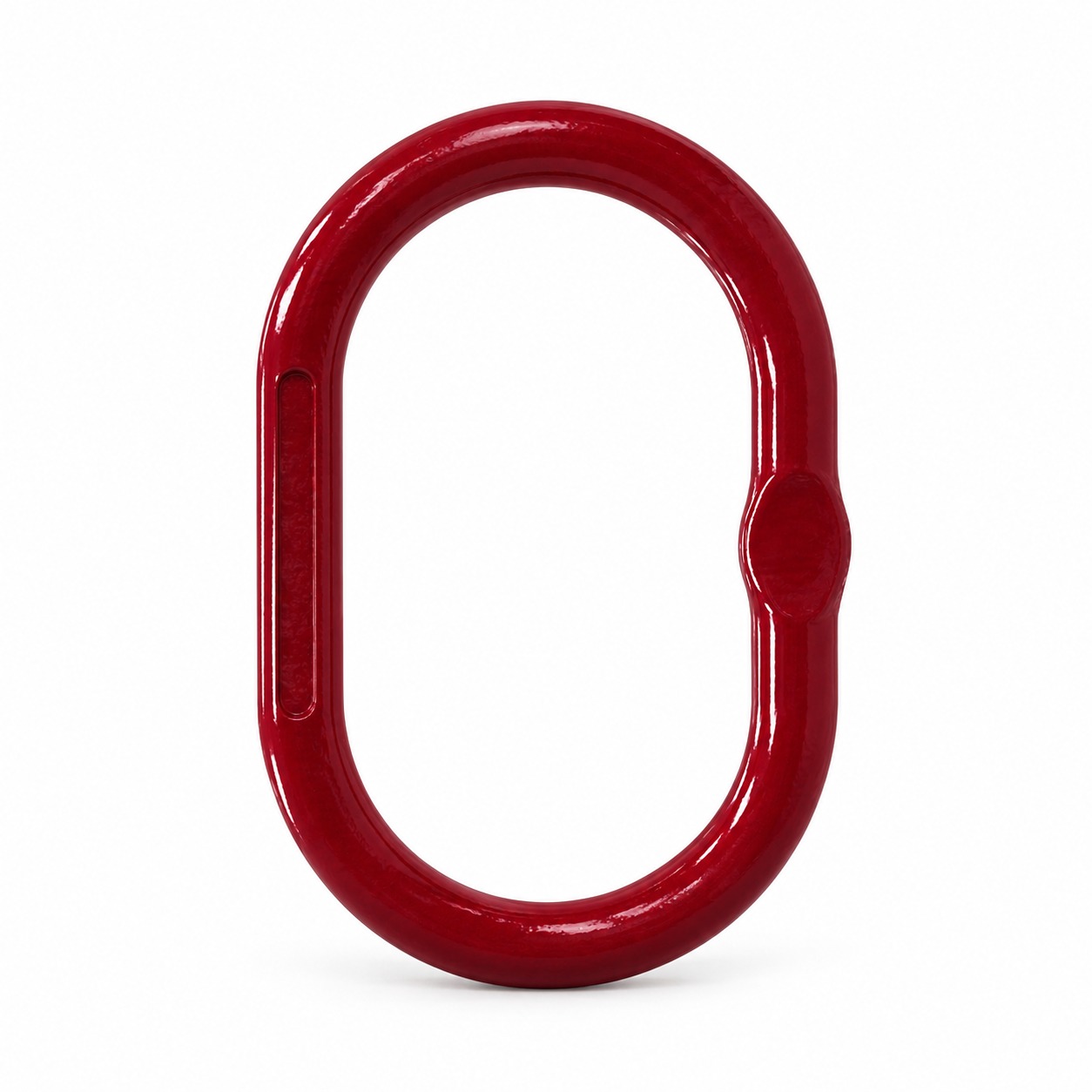

Master Link

Oblong master links for connecting lifting assemblies to a crane hook. The table lists the referenced single-leg and two-leg chain sizes.

View 9 sizes & technical specifications

Safespear code	Chain Size 1 Leg (mm)	Chain Size 2 Leg (mm)	WLL (t)	A (mm)	B (mm)	D (mm)	S (mm)	Weight (kg)
SS-G100-ML-0806	8	6	2.5	120	70	13	7	0.4
SS-G100-ML-1008	10	8	4.3*	140	80	17	8	0.7
SS-G100-ML-1310	13	10	7.5	160	95	22	11	1.5
SS-G100-ML-1613	16	13	12.5	180	100	27	14	2.51
SS-G100-ML-2016	20	16	17.3*	240	140	32	17	5.1
SS-G100-ML-2220	22	20	27.7*	250	150	38	21	7.2
SS-G100-ML-2622	26	22	32.9*	250	150	41	23	8.3
SS-G100-ML-3226	32	26	45.8	300	180	50	27	14.84
SS-G100-ML-3232	32	32	69.2	400	200	60	-	27.01

* Published reference ratings differ between source documents. Confirm these ratings with our team before selection.

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

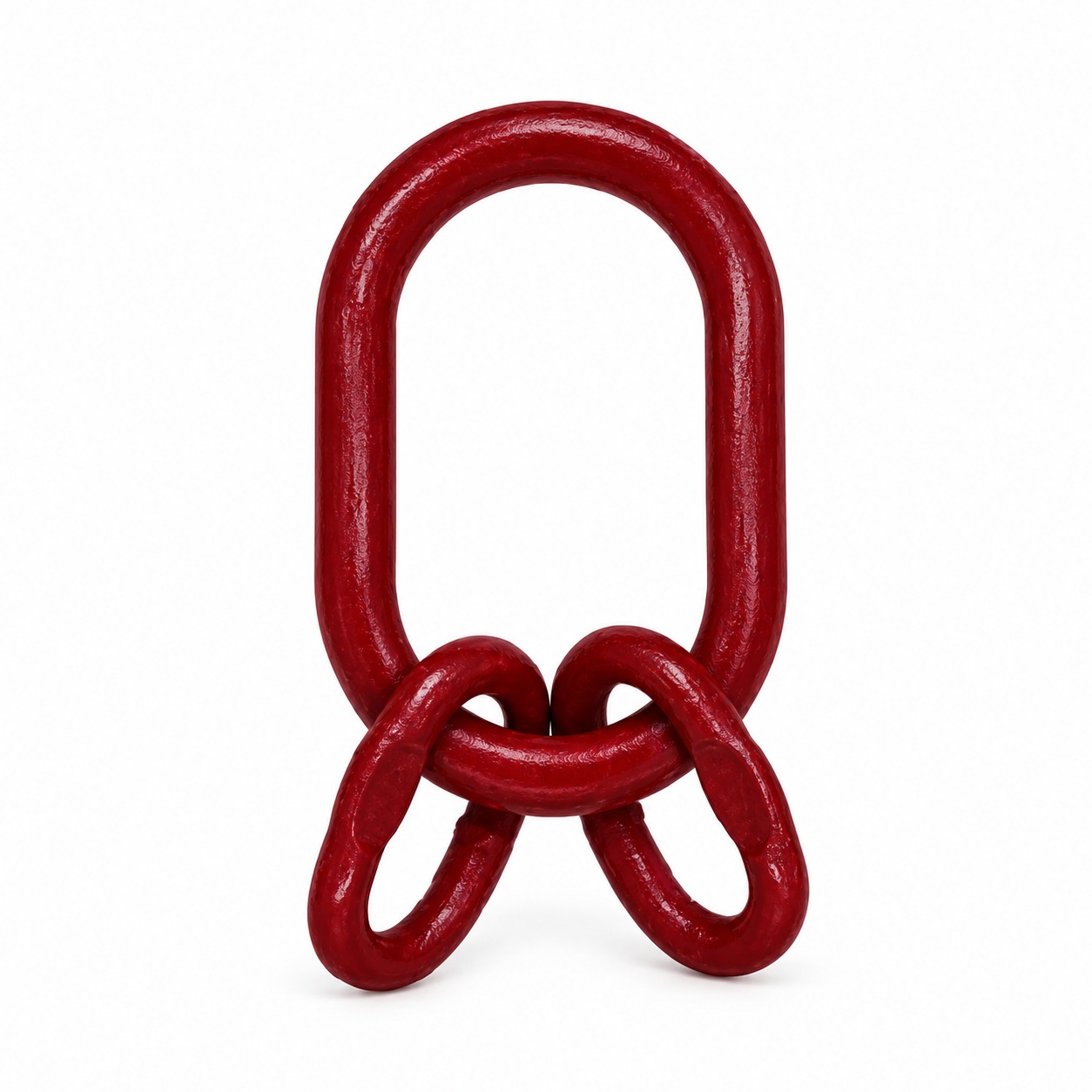

Master Link Multi

Master link assemblies with two intermediate links for multi-leg lifting assemblies. Match the master link, chain size and sling configuration.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	D (mm)	a (mm)	b (mm)	d (mm)	Weight (kg)
SS-G100-MLA-06	6	3	135	75	19	54	25	13	1.3
SS-G100-MLA-08	8	5.3	160	90	23	70	34	16.5	2.33
SS-G100-MLA-10	10	8	180	100	27	85	40	19	3.7
SS-G100-MLA-13	13	14	200	110	33	115	50	23	6.5
SS-G100-MLA-16	16	21.2	260	140	36	140	65	27	10.1
SS-G100-MLA-20	20	33.6	350	190	50	180	90	33	22.8
SS-G100-MLA-22	22	39.9	350	190	50	180	100	36	26
SS-G100-MLA-26	26	56	400	200	60	180	100	45	42.6
SS-G100-MLA-32	32	85	460	250	72	200	110	50	66.7

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

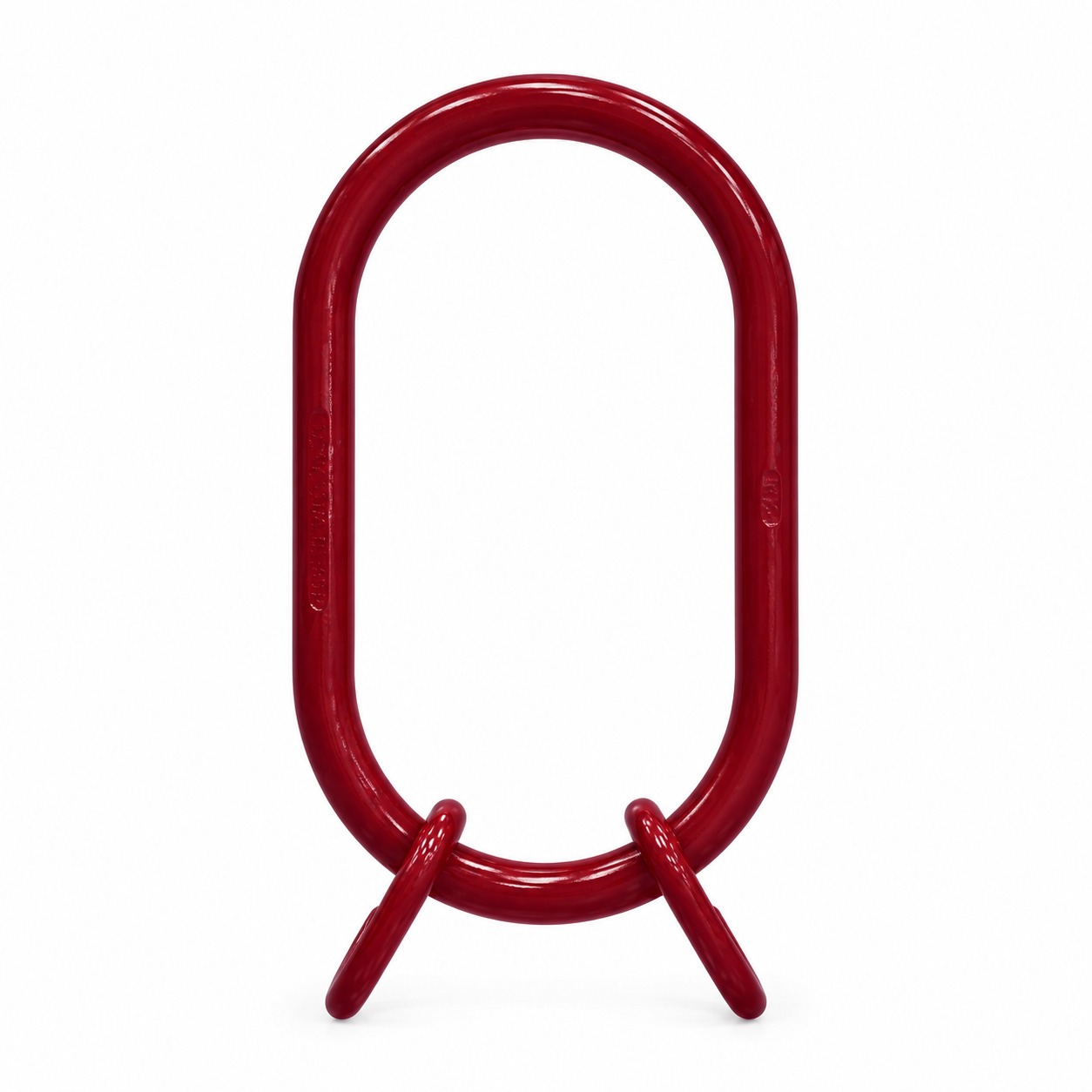

Oversized Master Link Multi

Enlarged master ring with intermediate links for larger crane hooks and multi-leg sling arrangements. Published load ratings require confirmation.

View 4 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	D (mm)	a (mm)	b (mm)	d (mm)	Weight (kg)
SS-G100-MLAO-08	8	5.6*	340	180	27	80	40	16	5.1
SS-G100-MLAO-10	10	9.5*	340	180	33	100	45	20	8
SS-G100-MLAO-13	13	14*	340	180	40	115	50	25	12.8
SS-G100-MLAO-16	16	21.2*	340	180	45	140	70	28	15.9

* Published reference ratings differ between source documents. Confirm these ratings with our team before selection.

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

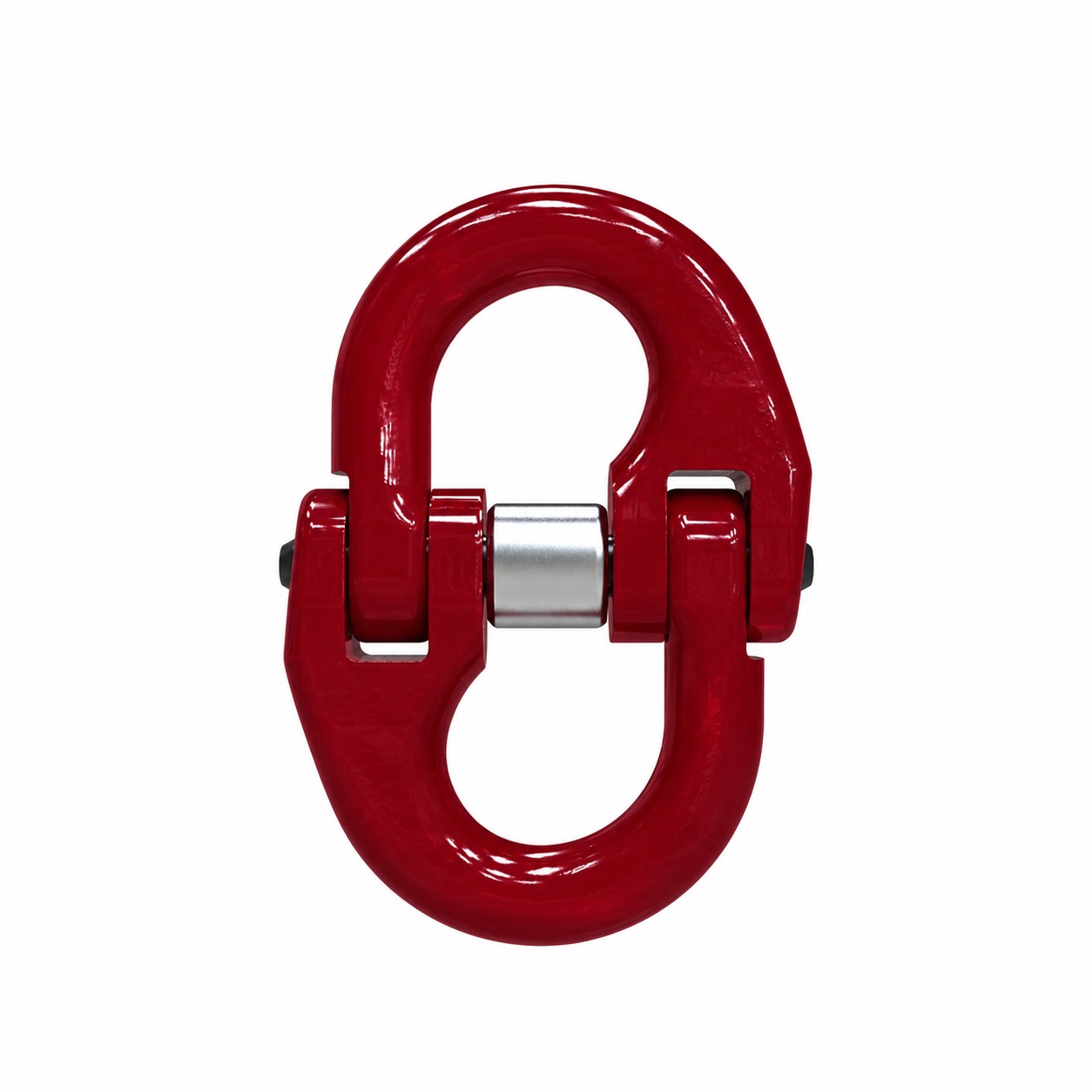

Connecting Link

Mechanical connecting links for joining compatible chain, master links and end fittings within a lifting assembly.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	K (mm)	H (mm)	Weight (kg)
SS-G100-CNL-06	6	1.4	14	16.9	8.5	7	44.5	11	0.08
SS-G100-CNL-08	8	2.5	18.5	22.7	10.5	10	63	14	0.18
SS-G100-CNL-10	10	4	23	27.7	12.6	12.6	71	18	0.34
SS-G100-CNL-13	13	6.7	28	33.2	16.5	16.5	92.5	23	0.68
SS-G100-CNL-16	16	10	33.5	39	20	20	106.5	29.5	1.22
SS-G100-CNL-20	20	16	42	47.3	25	25	123	35.5	2.13
SS-G100-CNL-22	22	19	48	55	27	27	137.5	39	3
SS-G100-CNL-26	26	26.5	61	68	32	32	163	45	5.22
SS-G100-CNL-32	32	40	80	87	40	40	197	54	9.55

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

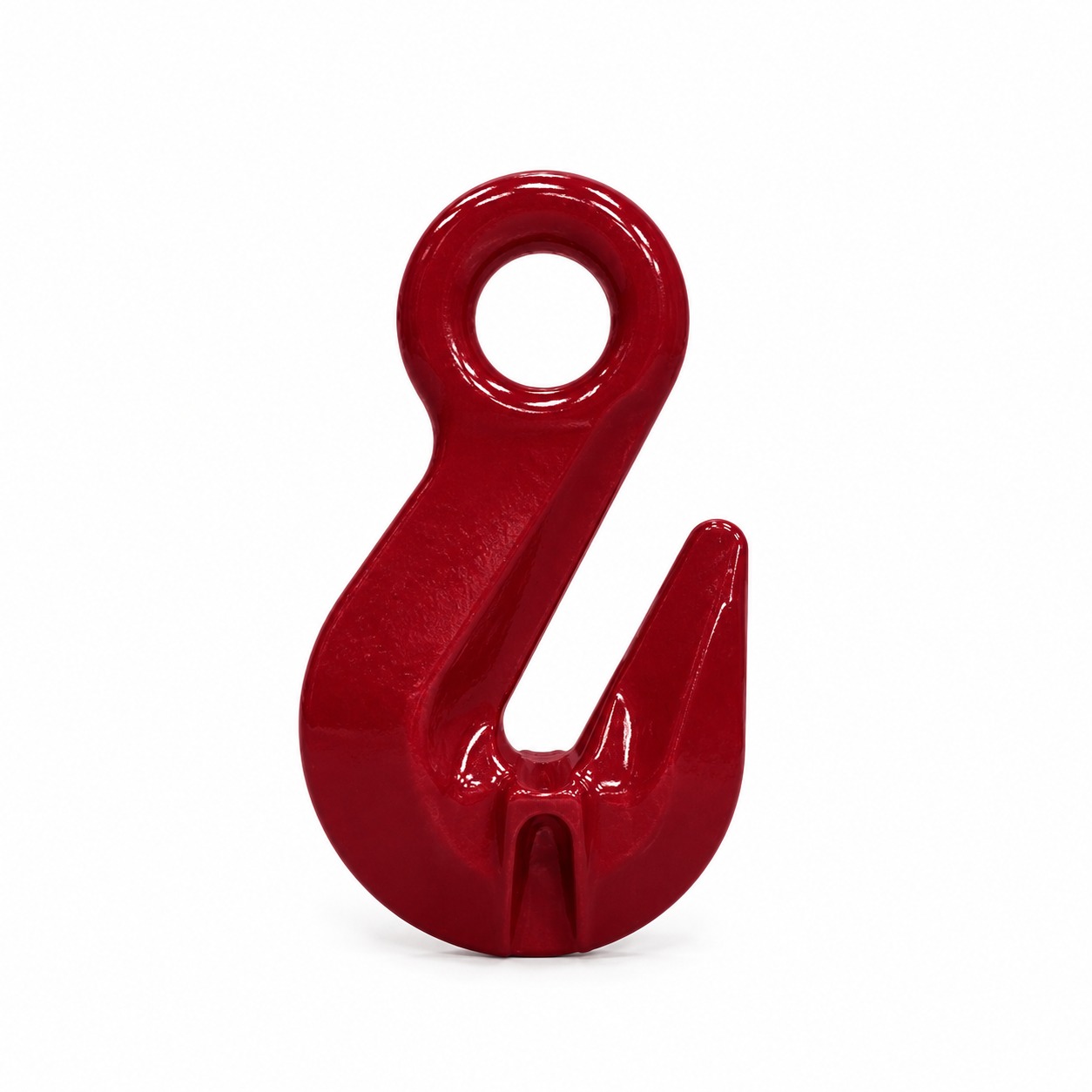

Eye Grab Hook

Eye-type grab hooks for chain shortening and back-hooking arrangements. The eye connects to the assembly through a suitable connecting link.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	E (mm)	B (mm)	D (mm)	M (mm)	L (mm)	L' (mm)	W (mm)	Weight (kg)
SS-G100-EGH-06	6	1.4	8	13.5	8	46.5	73	46	25.5	0.15
SS-G100-EGH-08	8	2.5	11	17.5	9.5	53	93	61	33.5	0.30
SS-G100-EGH-10	10	4	13.5	22	14	74	129	85	42	0.79
SS-G100-EGH-13	13	6.7	16.5	28	18.5	96	166	104	53.5	1.67
SS-G100-EGH-16	16	10	19	36	22	116	186	119	74	2.74
SS-G100-EGH-20	20	16	25	44	23	145	225	146	87	4.72
SS-G100-EGH-22	22	19	27	48.5	26	160.5	260.5	165.5	90	8.2
SS-G100-EGH-26	26	26.5*	34	52	34	190	311	204	110	11.35
SS-G100-EGH-32	32	40	41	64	40	229	373	246	130	20.65

* Published reference ratings differ between source documents. Confirm these ratings with our team before selection.

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

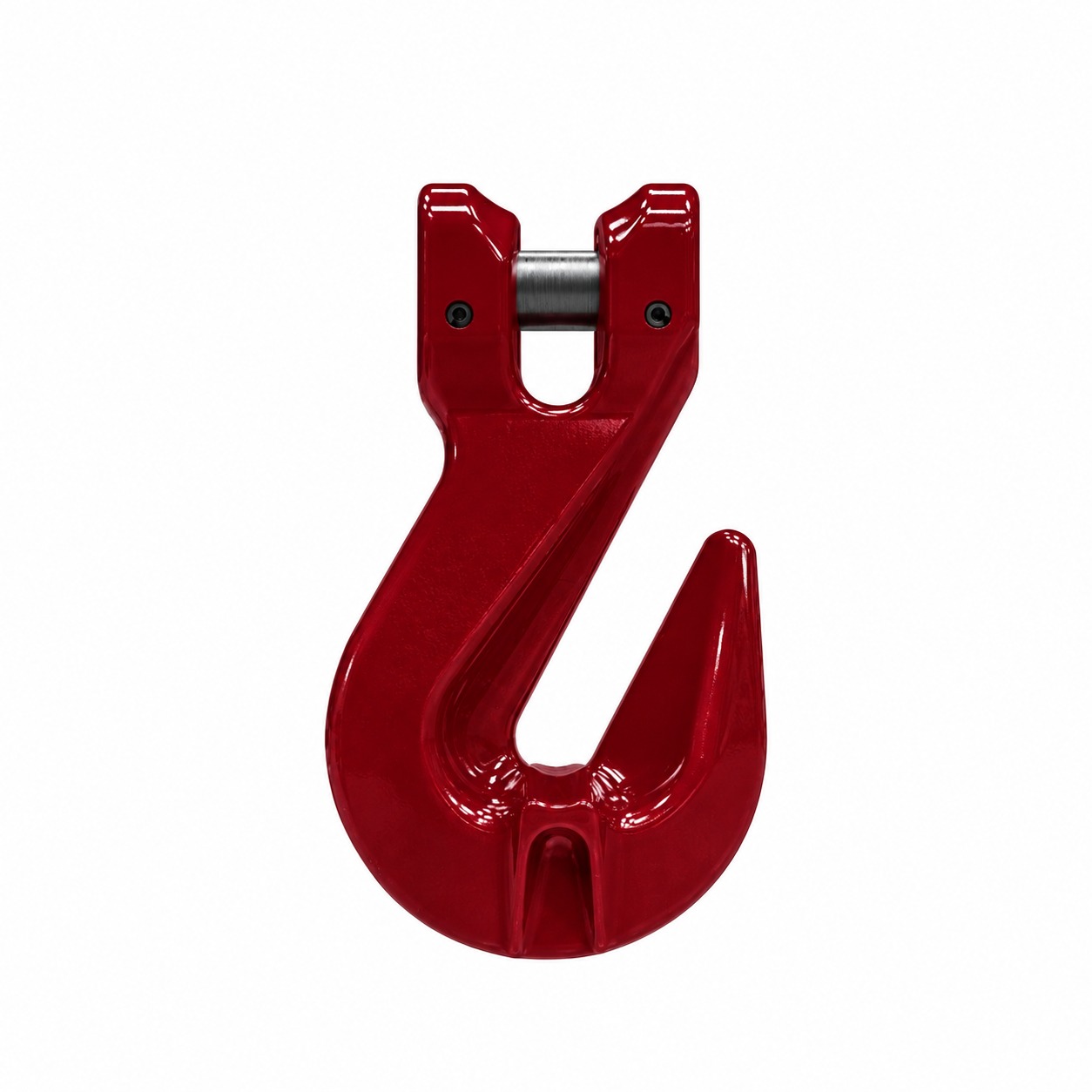

Clevis Grab Hook

Clevis-type grab hooks for chain shortening, with a direct chain connection. Dimensions below follow the downloadable technical sheet.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	E (mm)	M (mm)	W (mm)	L' (mm)	L (mm)	Weight (kg)
SS-G100-CGH-06	6	1.4	7.5	32	18	8	46.5	25.5	44.5	77.3	0.22
SS-G100-CGH-08	8	2.5	9.5	36	24	11	54	33.5	53	93	0.34
SS-G100-CGH-10	10	4	12.5	46	29.5	13.5	72	42	73	127	0.82
SS-G100-CGH-13	13	6.7	15	59	37	15	96	53.5	92	164	1.75
SS-G100-CGH-16	16	10	18.5	70	46	19	115	74	103	188	2.88
SS-G100-CGH-20	20	16	24	85	52	25	145	87	123	223	4.84
SS-G100-CGH-22	22	19	27	100	61	27	159	90	141	260	8.3
SS-G100-CGH-26	26	26.5	30	110	70	34	190	110	187	320	13.72
SS-G100-CGH-32	32	40	35	150	80	41	229	130	213	378	25.5

Dimensions follow the technical PDF. Supplied specifications are confirmed on enquiry.

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

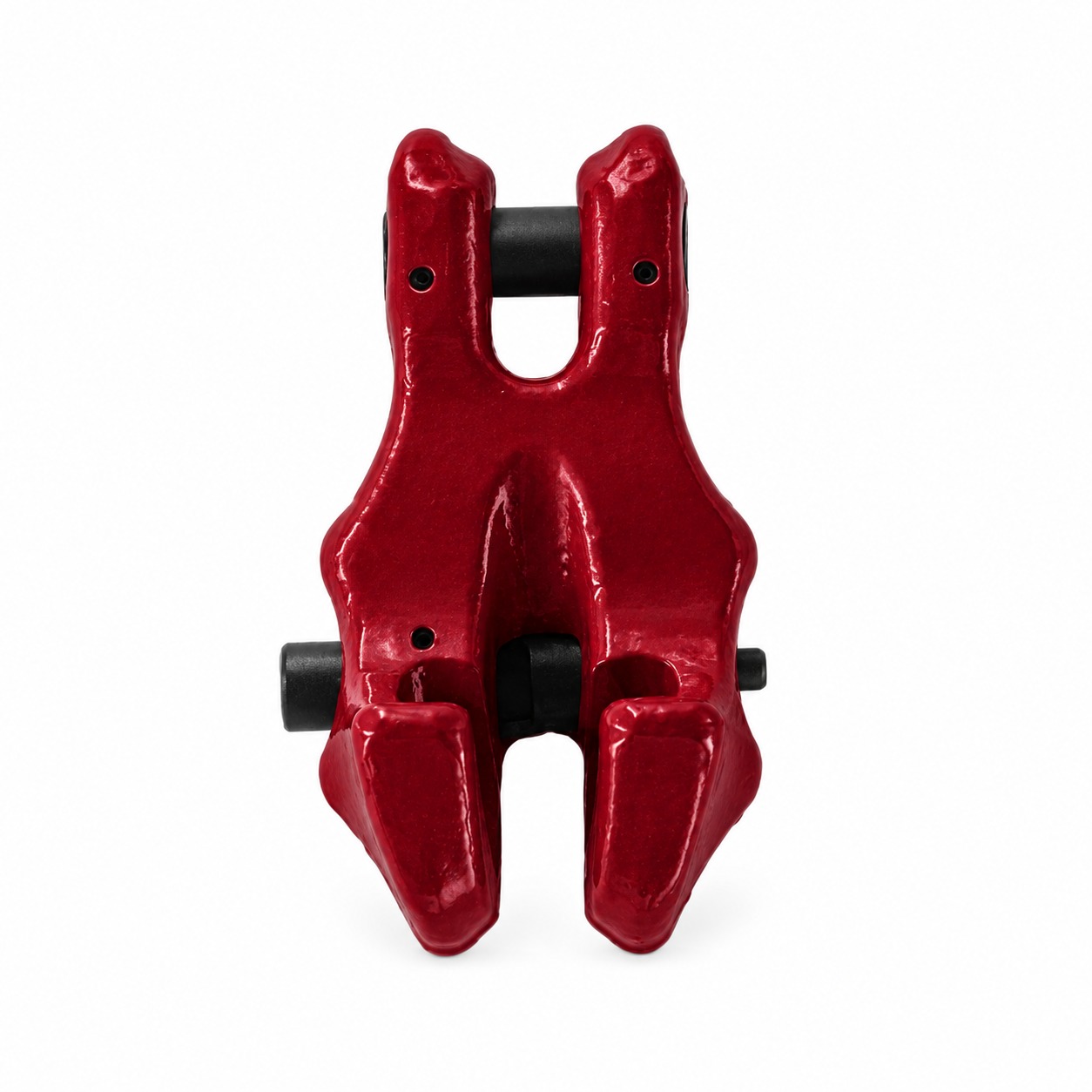

Clevis Shortening Clutch With Safety Pin

Chain-shortening clutch with retaining safety pin and direct clevis connection. Select the clutch to match the chain size and assembly.

View 5 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	M (mm)	N (mm)	L (mm)	Weight (kg)
SS-G100-CCSP-06	6	1.4	38	7.5	27	7.5	7.5	29	16	73	0.25
SS-G100-CCSP-08	8	2.5	50	9.5	33	9.5	9.2	36	23	92	0.43
SS-G100-CCSP-10	10	4	60	11.7	43.5	11.7	12	45.4	26	115	0.8
SS-G100-CCSP-13	13	6.7	79	15	55	15	15.5	54	34	149	1.67
SS-G100-CCSP-16	16	10	98	19	70	19	18.5	70	40	184	4.2

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

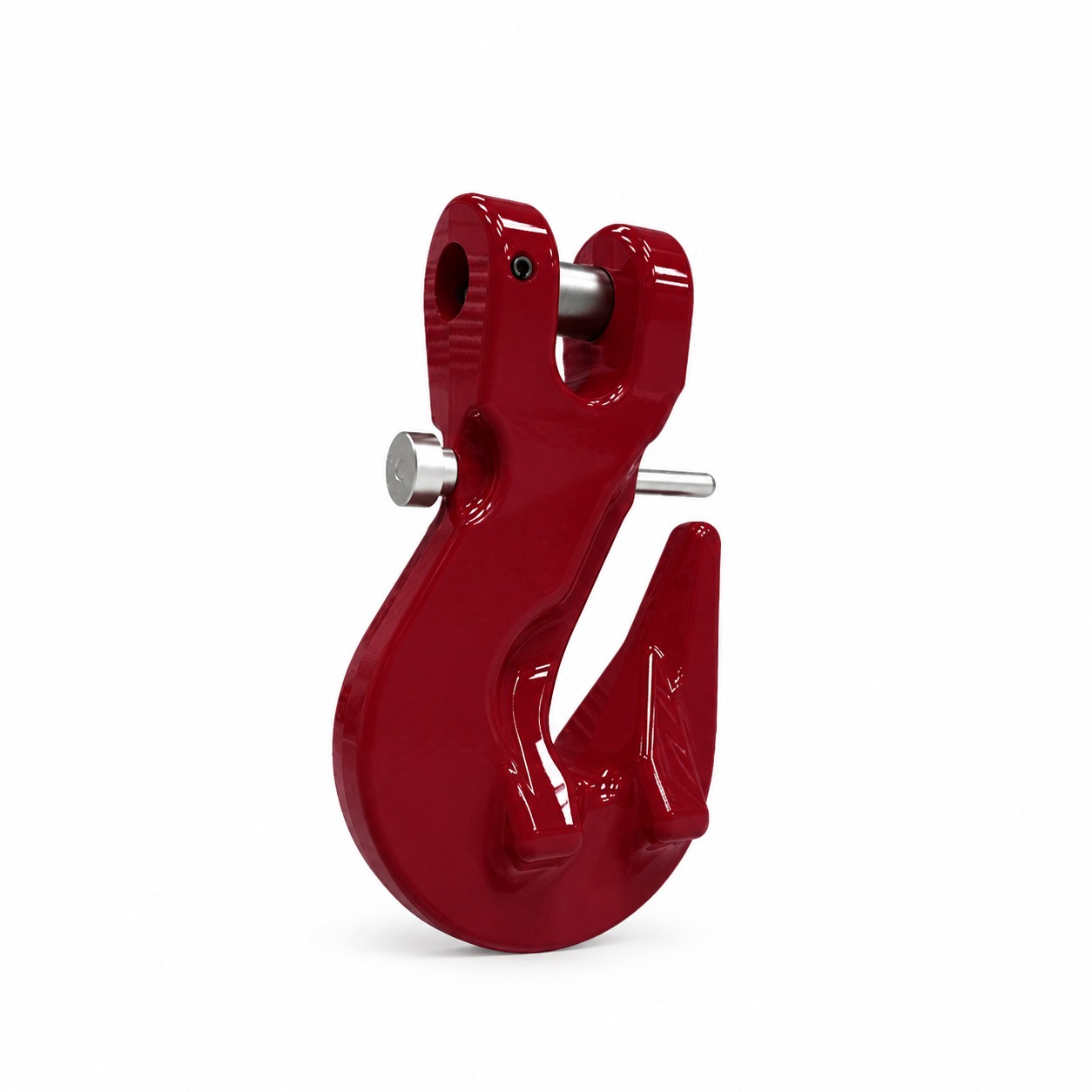

Clevis Grab Hook with Safety Pin

Grab hook with a retaining safety pin and direct clevis connection. Supporting shoulders locate the chain within the hook.

View 4 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	N (mm)	R (mm)	D (mm)	E (mm)	L (mm)	M (mm)	Weight (kg)
SS-G100-CGHSP-08	8	2.5	35.5	25	38	23	66	10	10.5	109	58	0.6
SS-G100-CGHSP-10	10	4	44	32	46	27	82	12	13	134	71.6	1.04
SS-G100-CGHSP-13	13	6.7	57	40	59.5	35	107	15	15.5	175.5	96	2.6
SS-G100-CGHSP-16	16	10	65	51.2	70	46	129	18.5	19	208	107	4.2

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

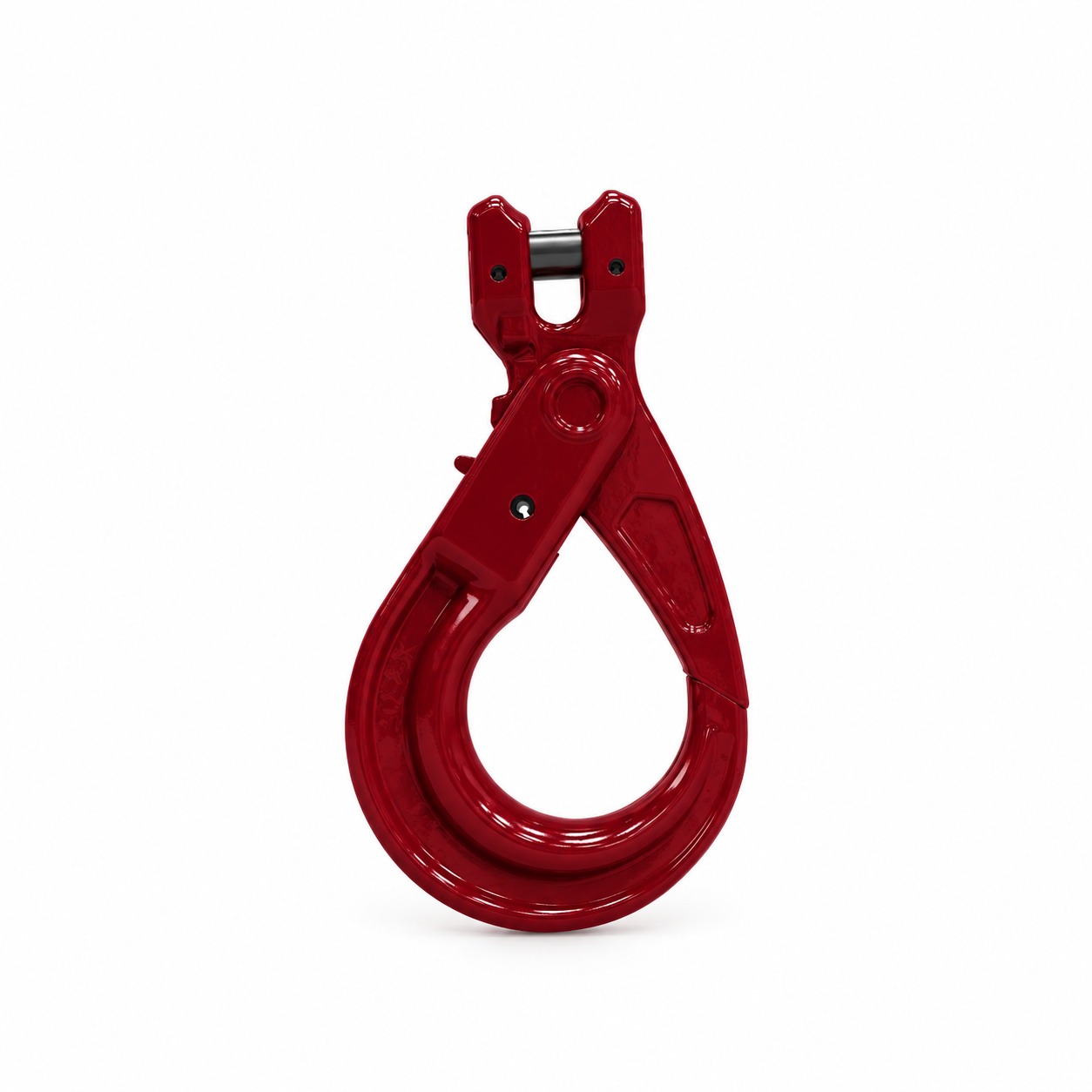

Clevis Self Locking Hook

Self-locking lifting hook with a direct clevis chain connection. The trigger mechanism locks the hook closed during the intended lifting operation.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	E (mm)	F (mm)	R (mm)	M (mm)	N (mm)	L (mm)	Weight (kg)
SS-G100-CSLH-06	6	1.4	8	32	28	31	96	70	15	131	0.5
SS-G100-CSLH-08	8	2.5	9.5	36	36	40	121	90	20	163	0.9
SS-G100-CSLH-10	10	4	12	46	45	50	144	108	26	196	1.6
SS-G100-CSLH-13	13	6.7	15	59	53.6	66	182	137	32.5	251	2.9
SS-G100-CSLH-16	16	10	18.5	70	61	75	220	168	38	303	5.8
SS-G100-CSLH-20	20	16	25	85	76.5	80	235	190	50	337	8.6
SS-G100-CSLH-22	22	19	25.5	98	80	104.6	271	202	52	386	12.1
SS-G100-CSLH-26	26	26.5	30	118	99	197	343	251	60	484	21.15
SS-G100-CSLH-32	32	40	35	150	135	142	423	329	75	601	43.4

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

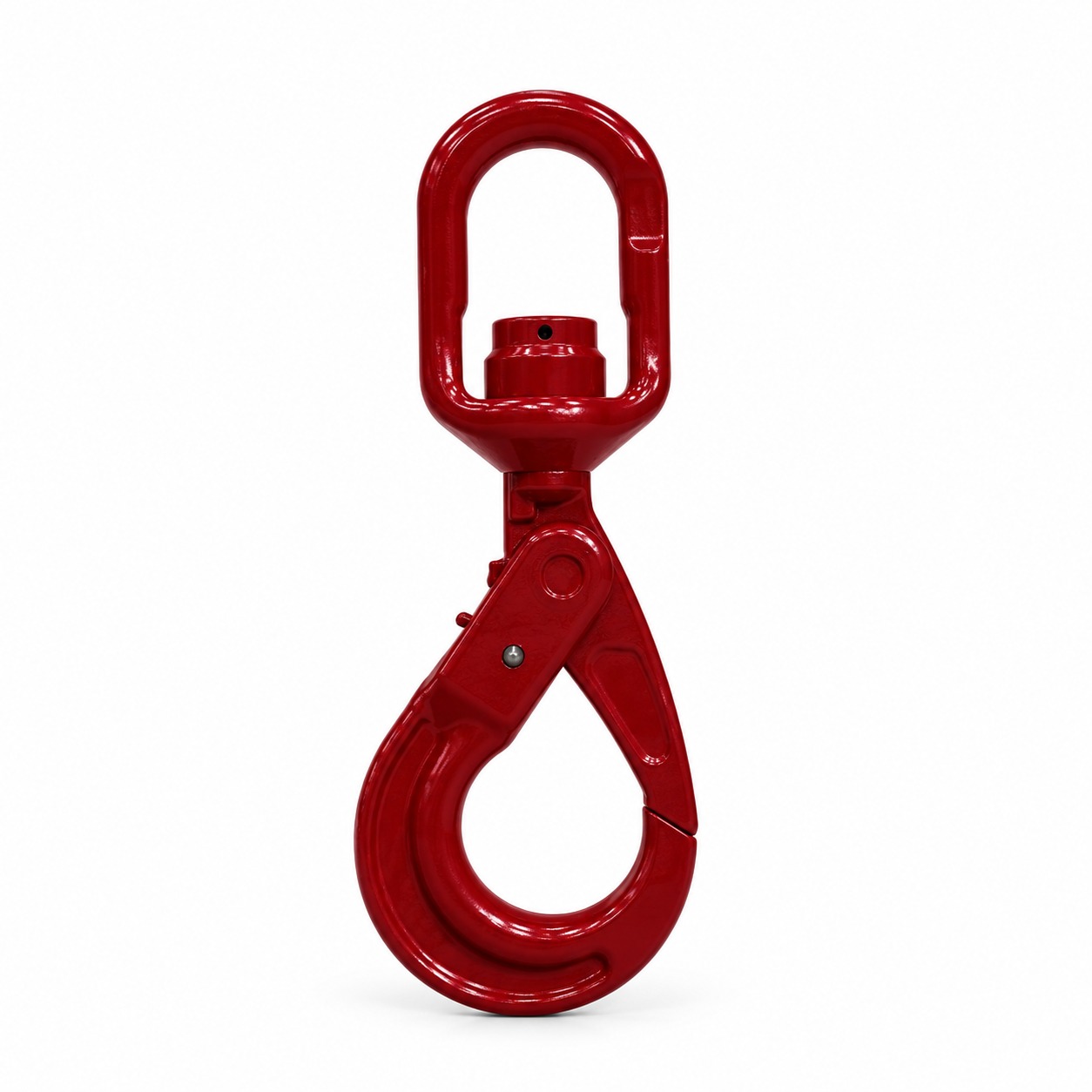

Eye Swivel Self Locking Hook (Ball Bearing)

Swivel-eye self-locking hook with a ball-bearing swivel. Match the hook and connection to the intended lifting assembly and operating conditions.

View 7 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	N (mm)	H (mm)	K (mm)	L (mm)	W (mm)	Weight (kg)
SS-G100-SSLHB-06	6	1.4	11.5	13	37	27	30	15	32	163	196.5	70	0.67
SS-G100-SSLHB-08	8	2.5	13	15	41	35.5	40	20	39	202	243	90	1.21
SS-G100-SSLHB-10	10	4	15.5	17.5	48	45	48	26	48	244	289	108	2.2
SS-G100-SSLHB-13	13	6.7	17	19	55	52.5	63	32.5	57	292	351	138	4.4
SS-G100-SSLHB-16	16	10	21.5	26	62	62	75	38	62	346	422	170	7.48
SS-G100-SSLHB-20	20	16	26.5	28.5	76	76	80	50	72	396	487	191	13.75
SS-G100-SSLHB-22	22	19	33	33	97	79	95	52	97	465	563	208	18.81

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

SAFESPEAR | LIFT

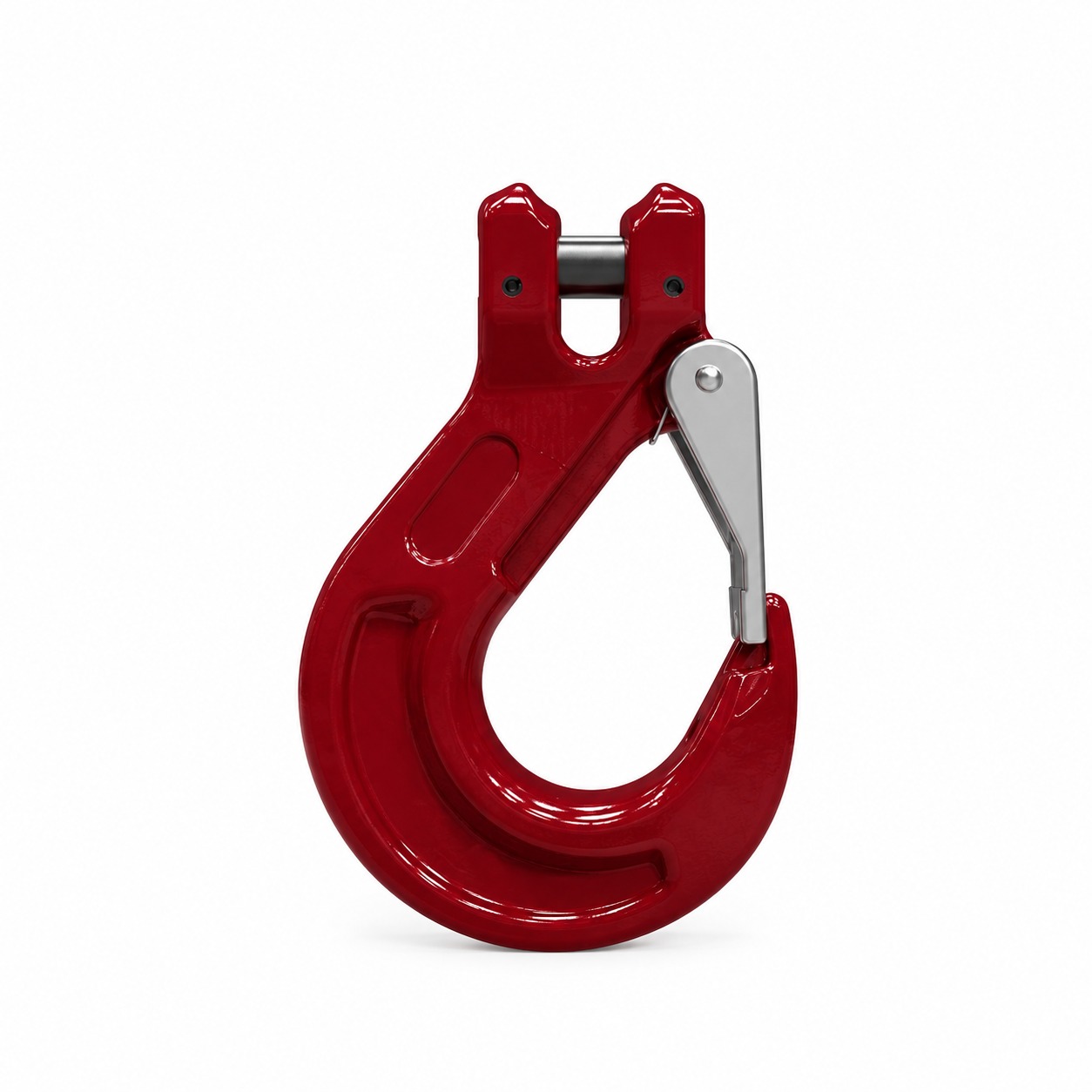

Clevis Sling Safety Hook

Clevis lifting hook with a cast safety latch and direct chain connection. Select the hook size to suit the chain and rated assembly.

View 9 sizes & technical specifications

Safespear code	Size (mm)	WLL (t)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)	M (mm)	L' (mm)	L (mm)	Ø (mm)	Weight (kg)
SS-G100-CSH-06	6	1.4	7.5	32	18	16.5	18.5	21	68.5	73	109	18	0.33
SS-G100-CSH-08	8	2.5	9.5	37	23	17	25	27.5	88	88.5	134	24	0.7
SS-G100-CSH-10	10	4	12	48	29.5	24	28	33.5	105.5	105	161.5	30	1.3
SS-G100-CSH-13	13	6.7	15	59	37	34	38	42	134	132	203	40	2.3
SS-G100-CSH-16	16	10	18.5	70	46	38	44	50	160.5	161	248	50	3.6
SS-G100-CSH-20	20	16	25	85	52	48	52	56	190.5	197	297	53	7
SS-G100-CSH-22	22	19	27	100	61	50	66	62	214.5	214	326	68	12.1
SS-G100-CSH-26	26	26.5	30	118	70	60	72	73	248	247	383	76	16.1
SS-G100-CSH-32	32	40	37.5	149	80	71	87	87	281	310	474	81	27.2

Dimensions in millimetres, WLL in tonnes. Assembly ratings depend on configuration and the lowest-rated component.

Download Safespear data sheet (PDF) ↓Enquire about this component ↗

Representative product images shown in deep candy apple red. Supplied finish, specifications, working load limits and documentation are confirmed on enquiry. Assembly ratings depend on the configuration, sling angles and lowest-rated component.

LET’S GET TO WORK

Tell us what your
project needs.

Speak with our team in Perth or Darwin about equipment, availability and project support.

Discuss Your Project ↗1300 080 298

Built to lift.Ready for the task.

Manual Chain Blocks

Lever Hoists

Round Slings

Chain slings.Built around your load.

Grade 100 Chain Sling Assemblies

12 product families. 90 size options.

Chain & components

Alloy Lifting Chain

Master Link

Master Link Multi

Oversized Master Link Multi

Connecting Link

Eye Grab Hook

Clevis Grab Hook

Clevis Shortening Clutch With Safety Pin

Clevis Grab Hook with Safety Pin

Clevis Self Locking Hook

Eye Swivel Self Locking Hook (Ball Bearing)

Clevis Sling Safety Hook

Tell us what yourproject needs.

Built to lift.
Ready for the task.

Chain slings.
Built around your load.

Tell us what your
project needs.
